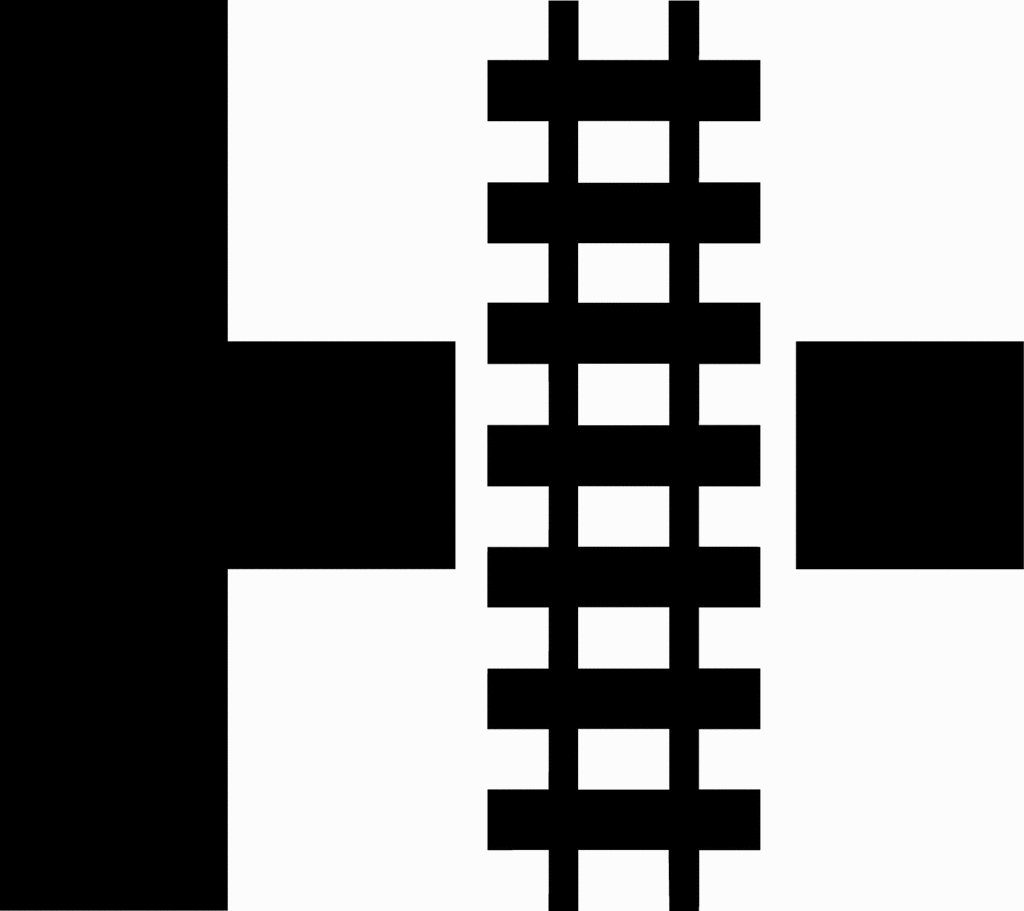

Highway-Rail Grade Crossing Advance Warning T-Intersection, Silhouette
If the distance between the railroad tracks and a parallel highway, from the edge of the tracks to the edge of the parallel roadway, is less than 30 m (100 ft), this sign shall be installed on each approach of the parallel highway to warn road users making a turn that they will encounter a highway-rail grade crossing soon after making a turn, and a Highway-Rail Grade Crossing Advance Warning sign for the approach to the tracks shall not be required to be between the tracks and the parallel highway.
Galleries
Advisory and Warning SignsSource
Federal Highway Administration Manual on Uniform Traffic Control Devices for Streets and Highways, 2003 Edition (including 2004 and 2007 revisions) (Washington, DC: United States Department of Transportation, 2007)
